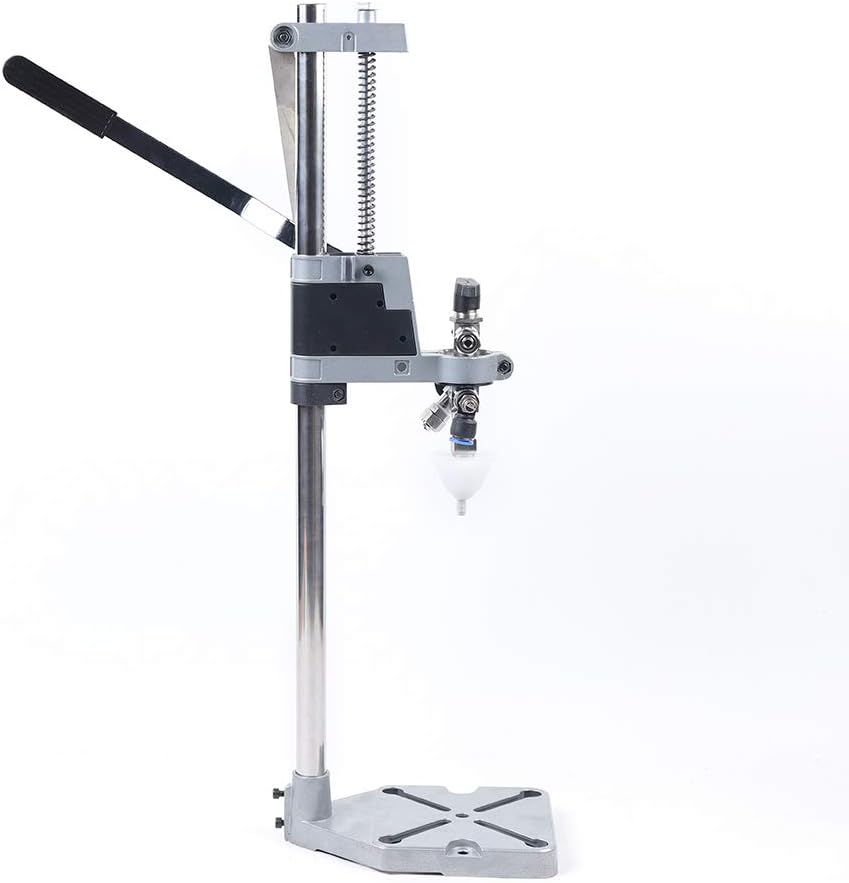

Bottle Filler, Manual Bottle Pressure Beer Filling Machine, Liquid Filling Machine Stainless Steel Pressure Filler for Beer/Wine/Glass/Convoluted/Plastic/Wine Bottles Beer, Mouth Below 50mm

ApplicationThis bottle filler can be used in homes, stores, wineries and so on. It is suitable for many sizes of glass bottles, swing bottles, various kinds of plastic bottles, wine jugs, tinplate wine barrels, etc, with a 0.394-1.97in inner diameter of the mouth of the bottle . It can also be used for filling liquids, oils, shampoos, liquid substances without particles, etc.How to Use1.Preparation: Press the handle, place the wine bottle into the base, and close the exhaust valve.2.Prepare Pressure: First, point the control valve towards the air inlet direction for backup pressure, and then point it towards the beer inlet direction.3.Exhaust and wine feed: Turn the exhaust inlet valve and start venting and pouring wine. (There is less foam, and the fastest wine-feeding speed is the best).4.Stop Filling Wine: Turn the control valve towards the center, stop pouring alcohol, and then turn the exhaust valve to exhaust any excess gas from the bottle. (Do not discharge too quickly, otherwise it will spray). After exhausting, take out the wine bottle.5.Filling Again: First, close the exhaust valve, place the wine bottle, then turn the control valve to point toward the gas cylinder for backup pressure, and then point towards the fermentation tank to start pouring wine. You don't need to adjust the exhaust valve anymore to directly pour wine.SpecificationsMaterial: 304 Stainless Steel and SiliconeColor: SilverOperation Type: ManualAssembly Required: YesConnector: G 1/4Net Weight: 3.9kg/8.6lbsGross Weight: 4.1kg/9.04lbsApplicable Beer Bottle Diameter: 10-50mm/0.394-1.97inProduct Size: 15.5*24*68cm/6*9.5*26.7 inIncluded1* Beer Filling Device1* HoseOther Accessories for AssemblyNotes1.Please note that this product is not suitable for filling liquids that are too viscous.

• 【Complete Functionality】The control valve can easily control the process of the air inlet, shut-off, and wine inlet; the wine inlet and CO2 inlet can be connected with wine tanks, KGE barrels, and CO2 gas cylinders(all not included); the exhaust valve can discharge excess liquid in the bottles at the end of canning; the wine inlet valve can control the speed of wine inlet and the amount of foam generated
• 【User-friendly Design】The height of the lifting lever handle is adjustable to fit different bottle heights.The special elbow can change the direction of beer inlet so that the beer will flow into the bottle along the bottle wall, which will effectively improve the filling speed and reduce the foam generation
• 【Space-saving】With its compact size (6*9.5*26.7 inches) and vertical construction, it can be placed on a countertop without taking up too much space
• 【Easy to Use】The simple structure and operating procedures make it possible for you to quickly get started with the application even if you are a novice and are very user-friendly
• 【Great Durability】The item is made of high-class 304 stainless steel, the stand supports the entire unit and ensures its stability during operation. The base provides additional support and helps to secure the position so that you can operate it reliably
