Refrigerated Dryer, 110V Small Air Compressor Freeze Dryer, Compressed Air Dryer Cooling Of The Water Removal Filtration Oxygen Chamber

Rated Voltage: 110V/AC Rated Current: 0.95A Rated power: 210W Rated flow rate: 120NL/min Outlet dew point: ≤10℃ Rated pressure: 4-8Bar Inlet port: Internal thread G1/4 Outlet port: Internal thread G1/4 Inlet temperature: ≤35℃ Working environment temperature: Normal temperature Cold chamber temperature: 0-10℃ (adjustable) Drainage time: 0-9999s (adjustable) Drainage interval time: 0-9999S (adjustable) Overall dimensions: 29*14*26CM Drainage pipe diameter: Ф6 Drainage method: Electromagnetic valve drainage

• The installation environment and ventilation should ensure good ventilation for the upper and lower ends and the front cooling fans. There should be no heat sources around. A space height of 100mm should be left at both ends. During installation and use, the equipment should be kept level, and attention should be paid to the collection of condensate water.
• Excessively high ambient temperature will cause the performance of the refrigerated dryer to relatively decline. The heat dissipation air outlet surface of this product corresponding to the installed equipment has ventilation holes. There should be no heat sources around. Make sure that the air inlet surface of this product corresponding to the installed equipment has space for air intake and is not completely blocked.

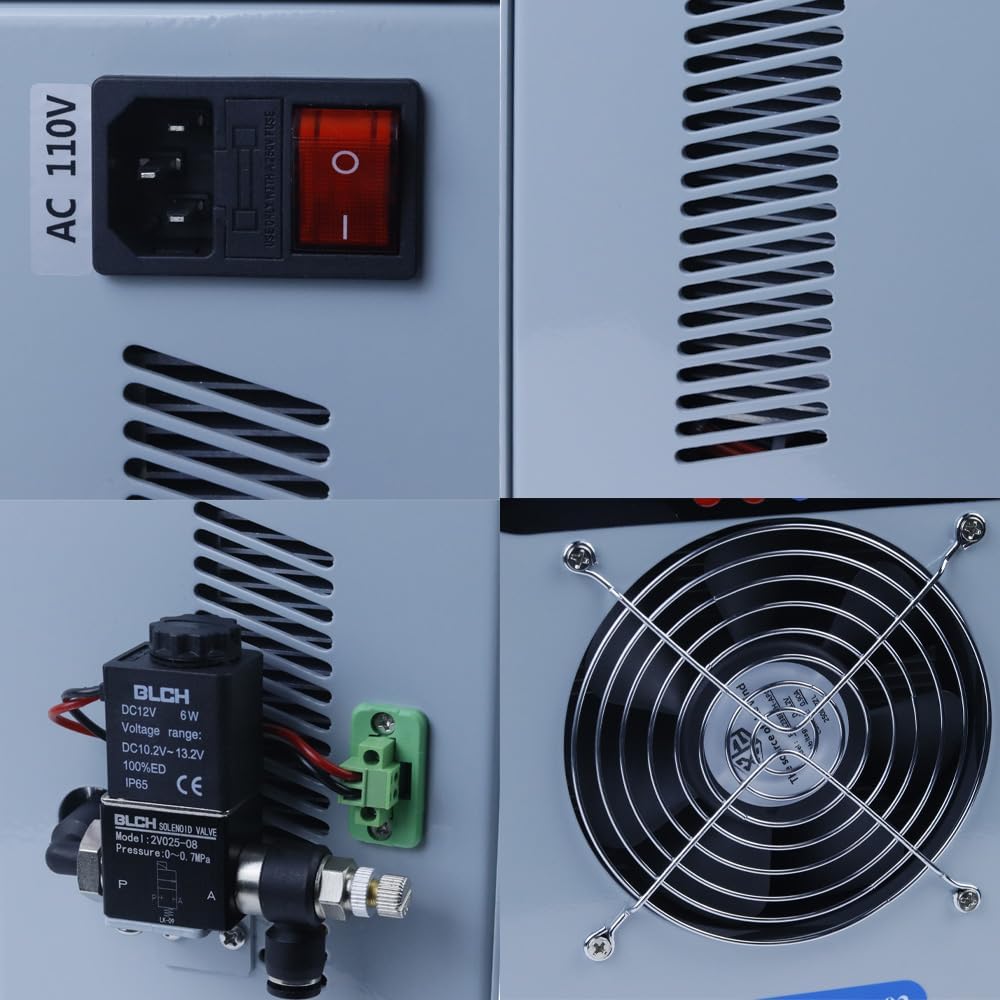

• The electrical wiring of the equipment is on the side power interface AC110V/1A of this product. The ground of the product casing and the power cord plug is already connected. Please ensure that the ground end of the socket is properly grounded.
• When starting up and debugging the equipment, check that there is no gas leakage at all gas connection points and ensure that the power connection is correct. Connect the power supply and the equipment starts up. After working for a few minutes, the dew point will drop and it will take about 20 minutes (depending on the ambient temperature) to reach a stable state.
• Panel operation and parameter setting: This equipment can set the control target temperature and the working parameters of the drain valve on the panel. Temperature setting: Press "SET".
